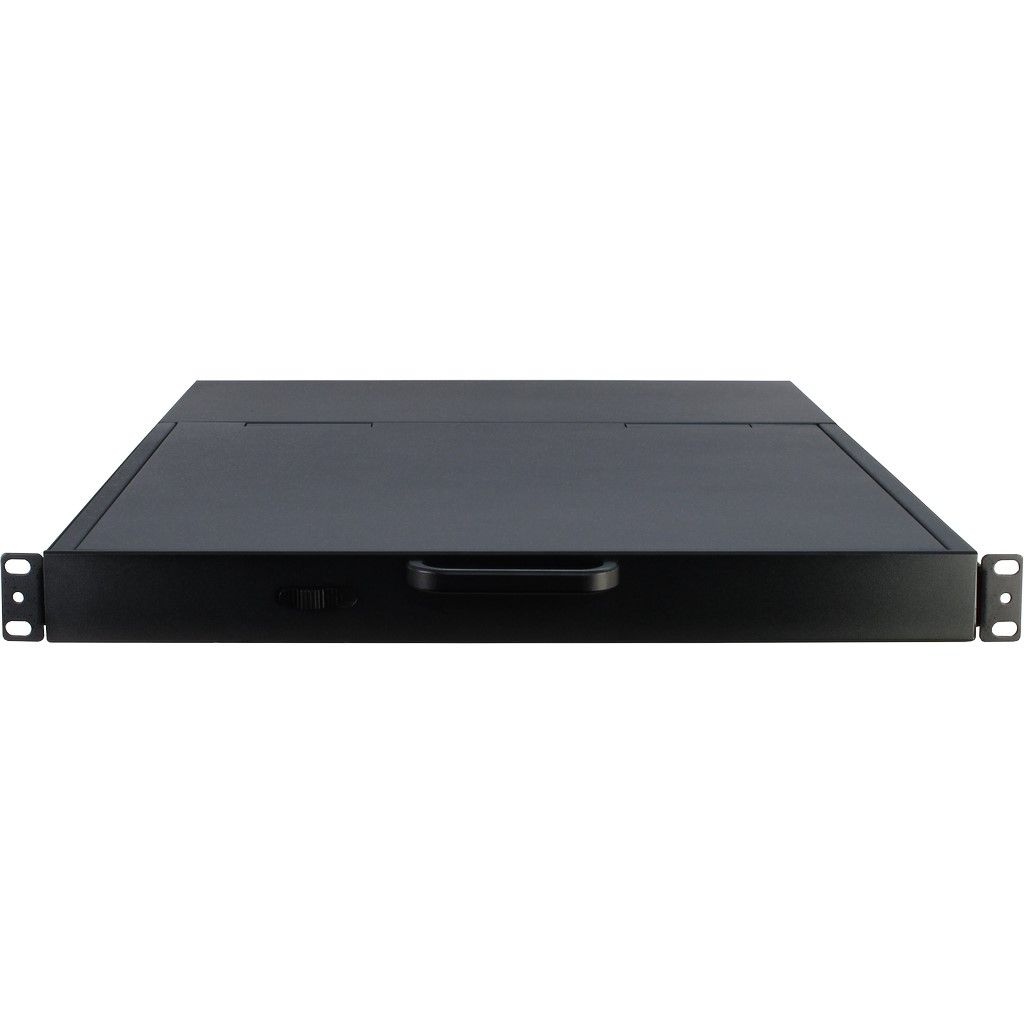

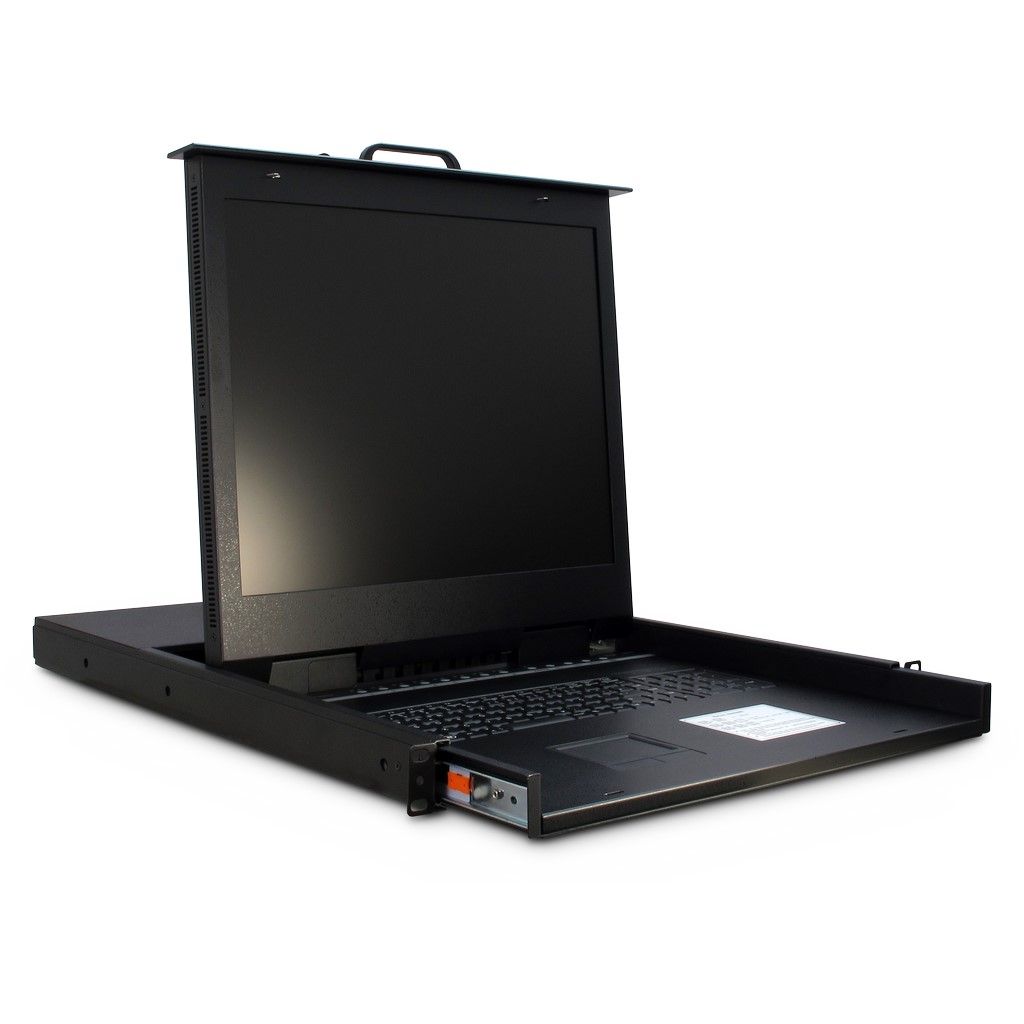

KVM Console 1908 Item No.: 88887026

The KVM 1908 is a professional 8-port KVM-Switch with integrated an extendable keyboard and a 19" TFT LCD monitor.

This device is manly used to centralise the operation of numerous servers in server cabinets via the integrated KVM-switch.

The integrated password protection avoids the access to the keyboard and monitor and protect your server again unauthorised users.

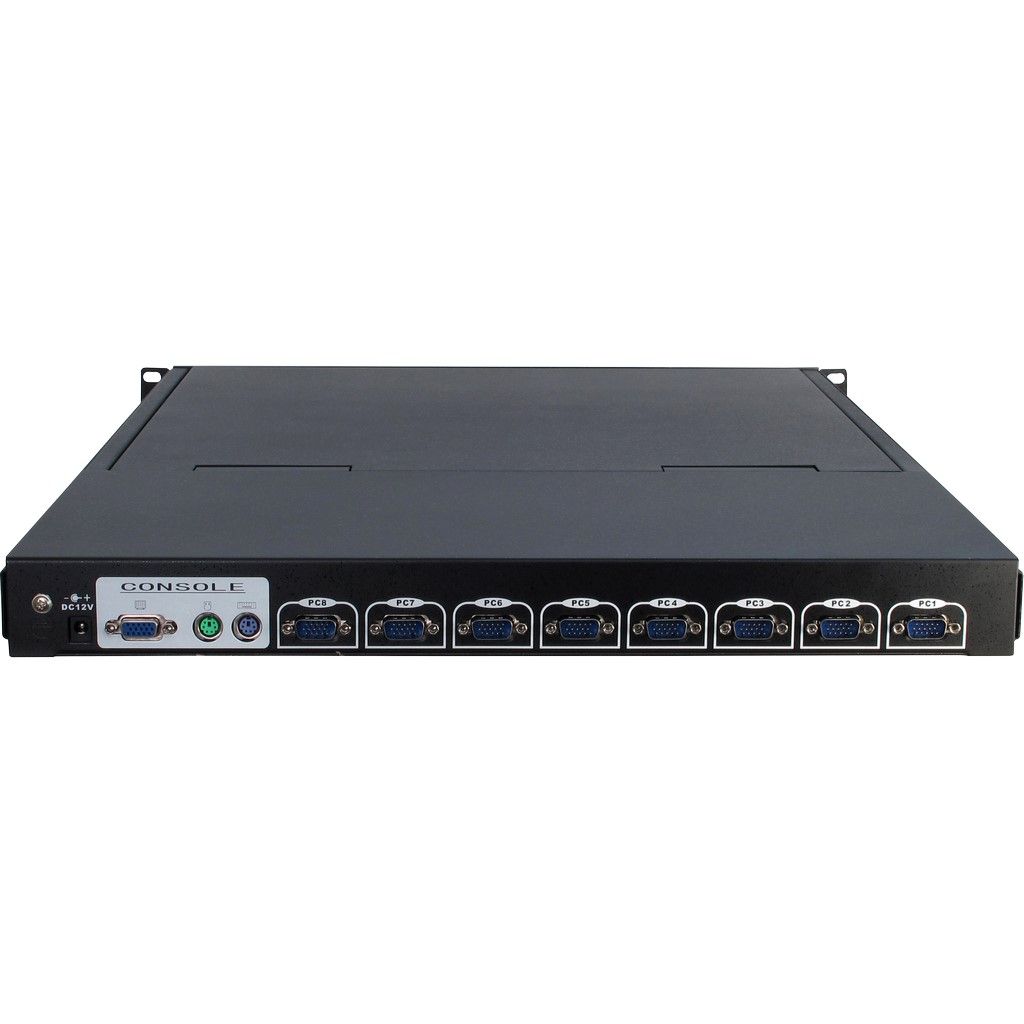

The KVM can be connected alternatively by PS/2 or USB via 8 provided connection cables.

General Data

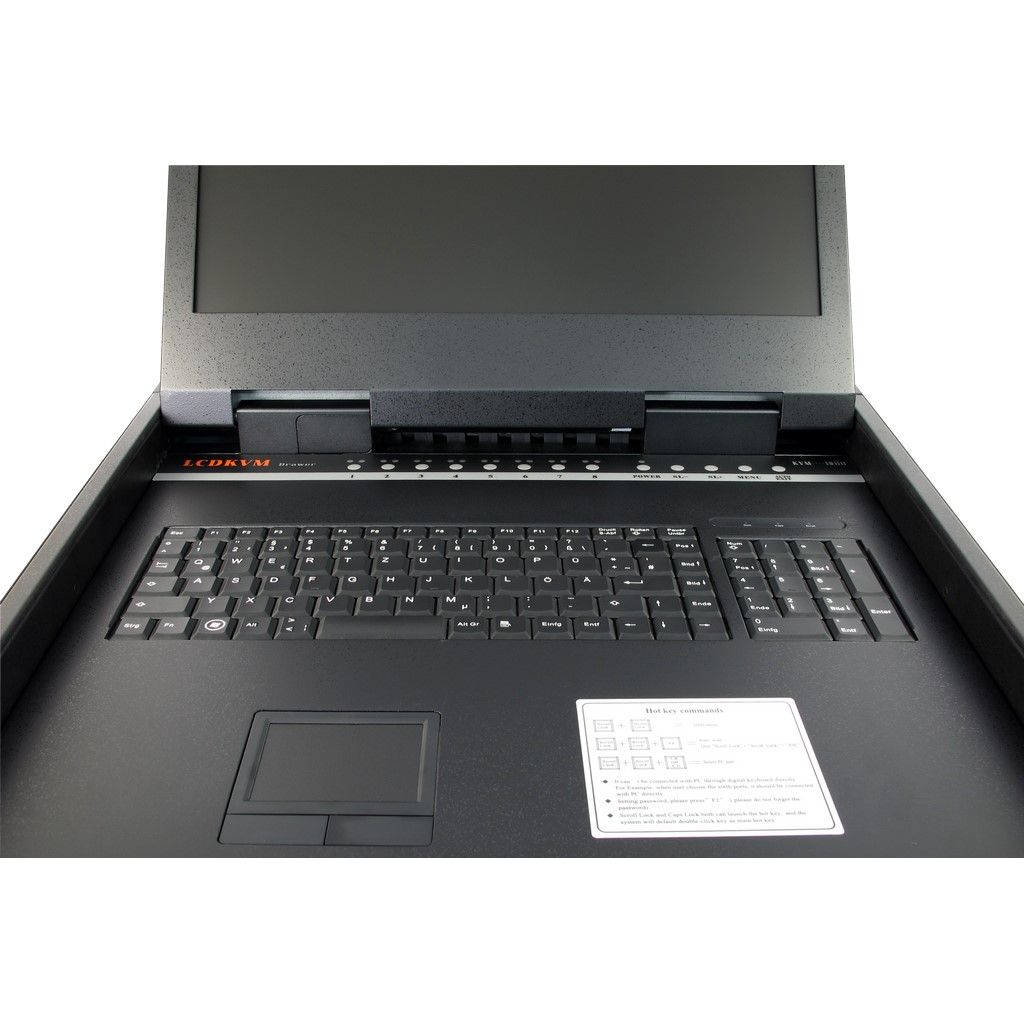

Keyboard	104-Key with Touchpad
Monitor	19" TFT LCD
Output	8
Maximal Number of Administrable PCs	256
For Cabinet	800-1000mm
Connectors	D-SUB15 (LCD, PS2/USB Keyboard, Mouse) OSD Switch
Supported OS	No Restrictions
Switch Modi	OSD Menu
Switch Scan Time	1-255s (OSD adjustable)
DDC
Display Data
Resolution	1600x1280
Frequency Range	75Hz
Brightness	300lm
Contrast	1000:1
other Data
Power Supply	External PSU
Input	AC 100-240V 47-63HZ 30W
Material	Rust-resistant Steel
Operating Temperature Storage Temperature	-10°C~60°C -30°C~70°C
Humidity	0-80%
MBTF	Approx. 120.000 hrs.
Dimension (h/w/d)	44 x 440 x 615mm
Guarantee	24 months
Scope of delivery & Features
Scope of delivery	KVM-1908 Retail packaging 8x KVM Cable VGA / PS/2 / USB (180cm) Installation Rail Set Power Cord External PSU Manual (german) Warranty Card
Features	8x Hotkeys Password protection for keyboard and monitor
Logistical data
Shipping Unit	1 Pcs
EU palett	15 Pcs
Weight	net = 14.56kgs gross = 21.80kgs
Item number	88887026
EAN-Code	4260133123397

No further information is available for this product.
KVM Cable 3m

Item No.: 88887055
EAN: 4260133125025

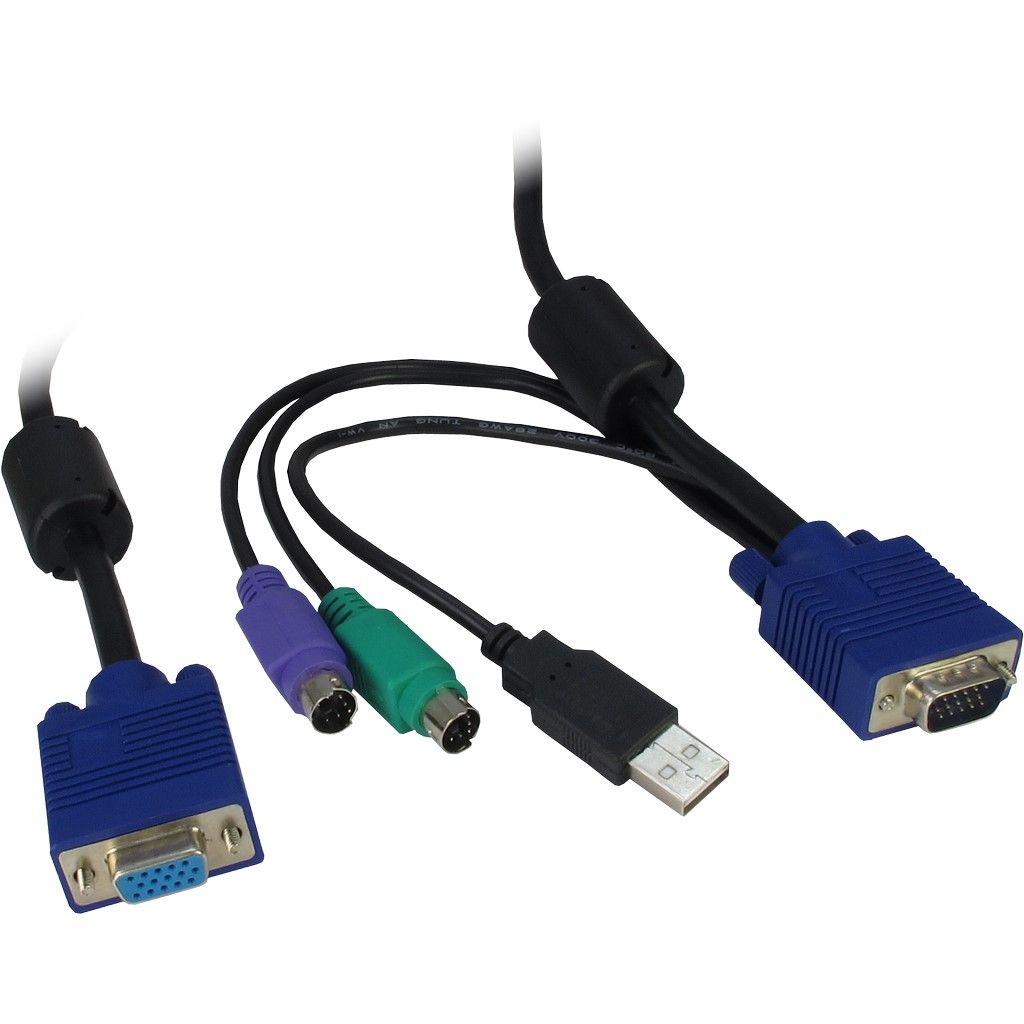

KVM Cable VGA/PS2/USB, 3m length

KVM Cable 5m

Item No.: 88887056
EAN: 4260133125032

KVM Cable VGA/PS2/USB, 5m length

KVM Cable 10m

Item No.: 88887057
EAN: 4260133125049

KVM Cable VGA/PS2/USB, 10m length
