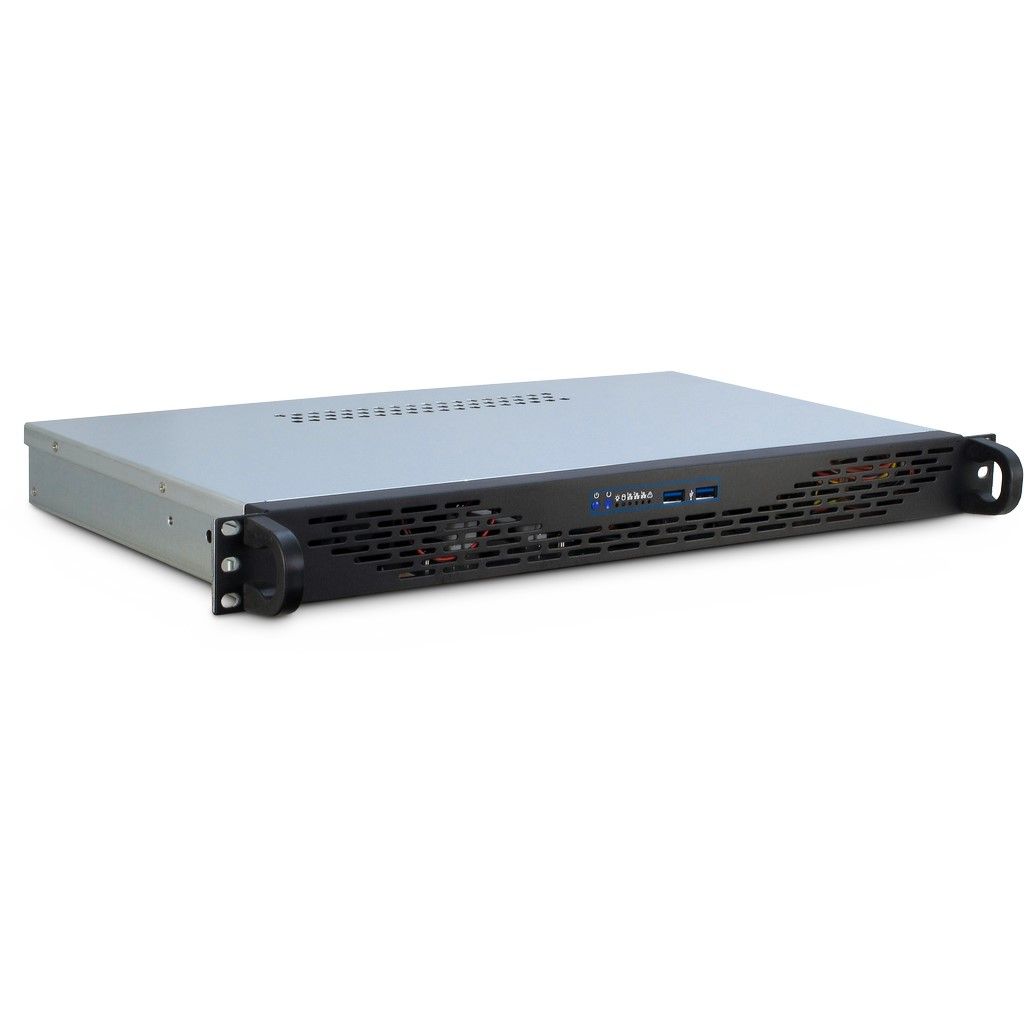

1U K-125L
The 1U K-125L is the perfect rack for a small and cost-effective server system.
Its compact design and its small installation depth of 250mm for ITX boards allows this case to fit in to nearly every rack.

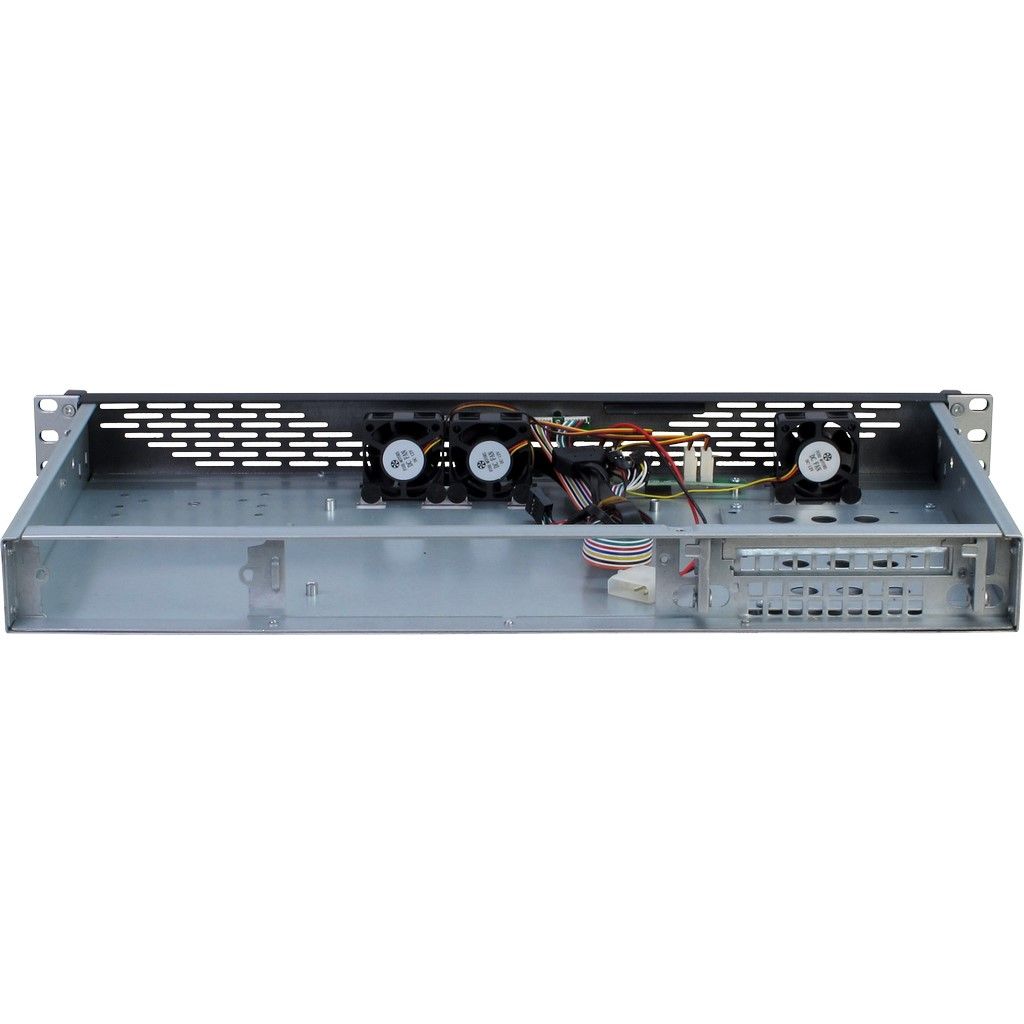

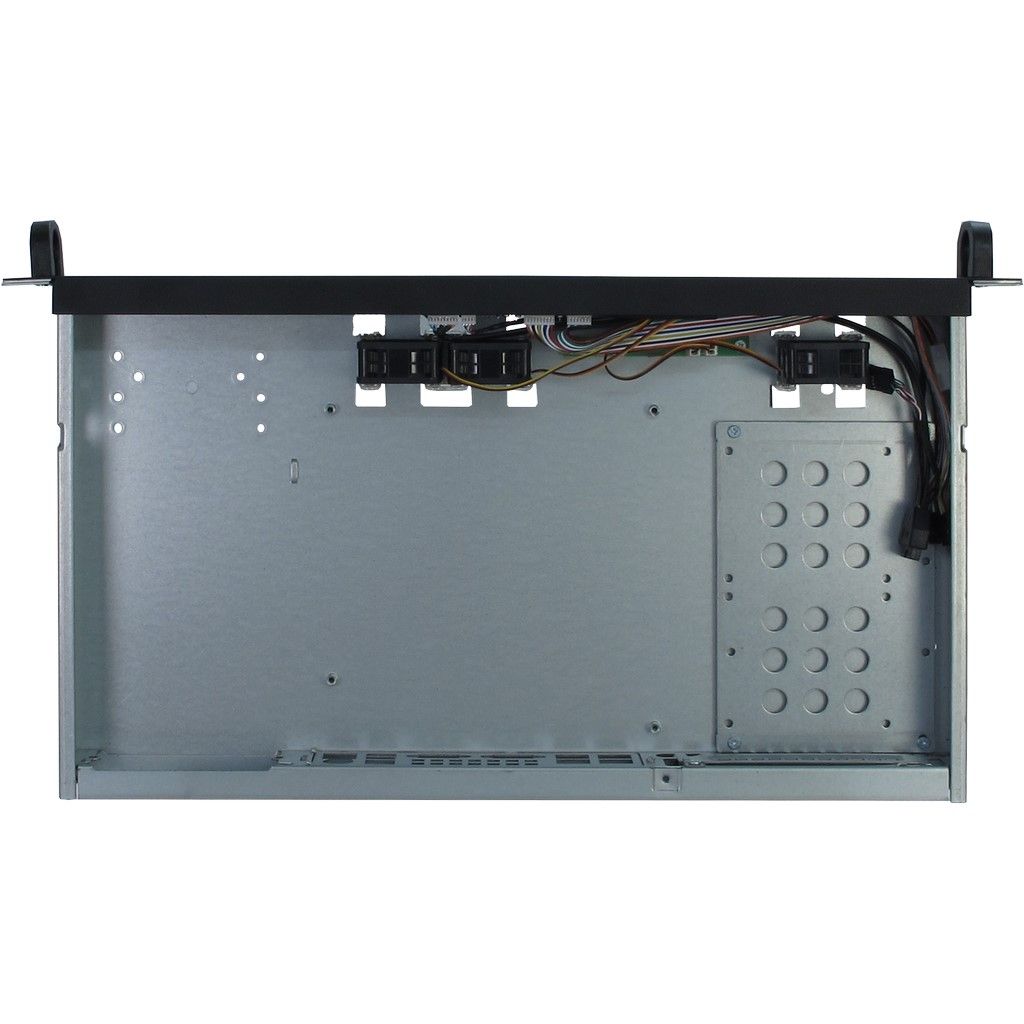

The 1U K-125L provides internal space for optional 1x 3.5" or 2x 2.5" hard drives. Three standard 40mm fans, which are internally mounted behind the front panel, ensure a reliable and optimal cooling.
In the front are two USB 3.0 ports next to the controls.
Suitable cables can be found here: Cable program
-
-
¹ can vary by using several mounting options
Motherboard Form factor Mini ITX Installation Dimensions Height CPU cooler (max.) 32mm Length graphics card (max.) 170mm Drive Bays 5.25" external 5.25" external (slim) 3.5" external 3.5" internal 1x / ¹ 2.5" internal / 2x¹ Front connectors USB 3.0 2x USB 2.0 Power supply FlexATX PSU Fan mounting option Inside 3x 40mm (serial, Molex connector) Controls & LED Controls Power-Switch
Reset-ButtonLED Power
HDD Activity
Network Activity
Overheating Alert
Power Failureother Data Dimensions (h/w/d) 44.5 x 482 x 278mm Material 1.0-1.2mm Steel Warranty 24 months Scope of delivery & Features Scope of delivery Case
Retail packaging
Screw Set
IPC I/O Shield 8 (Universal for cut out)
Mounting frame for optional 1U Power Supply
Features Only 250mm Depth
Serial 3x 40mm fan
USB 3.0 intern as block connector
Logistical data Shipping Unit 1 Pcs EU palett 65 Pcs Weight net = 2.79kgs
gross = 3.91kgsItem number 88887085 EAN-Code 4260133125711 -
No further information is available for this product.
-
