EPS-650W CM
The Energon EPS-650W CM Power Supply with Cable Management
Based on our top selling product Energon EPS-650W, Inter-Tech designed the EPS-650W CM to satisfy the growing demand of the market for power supplies with flexible cable management. Except the basic 20+4 mainboard and P4+4 connectors which are bounded all other connectors are modular.
Additionally, the EPS-650W CM is equipped excellently with a super silent 135mm fan, a PCI-Express and a big array of S-ATA and IDE connectors.
Two standard S-ATA to IDE adapters makes the EPS-650W CM even more flexible in its range of use.
-
-
Power & Efficiency Output 650Watt Efficiency at 20% = 82.5%
at 50% = 85.5%
at 100% = 83.7%ATX-Version 2.2 Connectors Mainboard 20+4Pin 1x 4Pin / 4+4Pin / 8Pin 12V / / PCI-Express 6+2Pin 1x PCI-Express 6Pin IDE 4Pin (Molex) 2x S-ATA 4x Floppy 1x Fan monitoring Cable management other Data Fans / -size 1x 135mm Fan control auto Full Range Input auto 80PLUS® Certificate Noise level 19-21dB Dimension (h/w/d) 86 x 150 x 160mm Guarantee 24 months Safeties OVP, SCP , OPP, UVP, OS Scope of delivery & Features Scope of delivery Power supply EPS-650W CM
Retail package
2x S-ATA to IDE Adapter
Cable Strips
Thumbscrews
Power Cord
User manual in German
Logistical data Shipping Unit 1 Pcs Packing Unit 5 Pcs EU palett 210 Pcs Weight net = 1.32kgs
gross = 1.88kgsItem number 88882090 EAN-Code 4260133123458 -
Performance data
AC Input 115V/230V 3A 50/60Hz DC Output + 3.3V + 5V + 12V1 + 12V2 + 12V3 + 12V4 - 12V + 5VSB Energon
EPS-650W CMMax.
Current28A 28A 18A 18A 18A 18A 0.8A 2.5A Max.
Combined

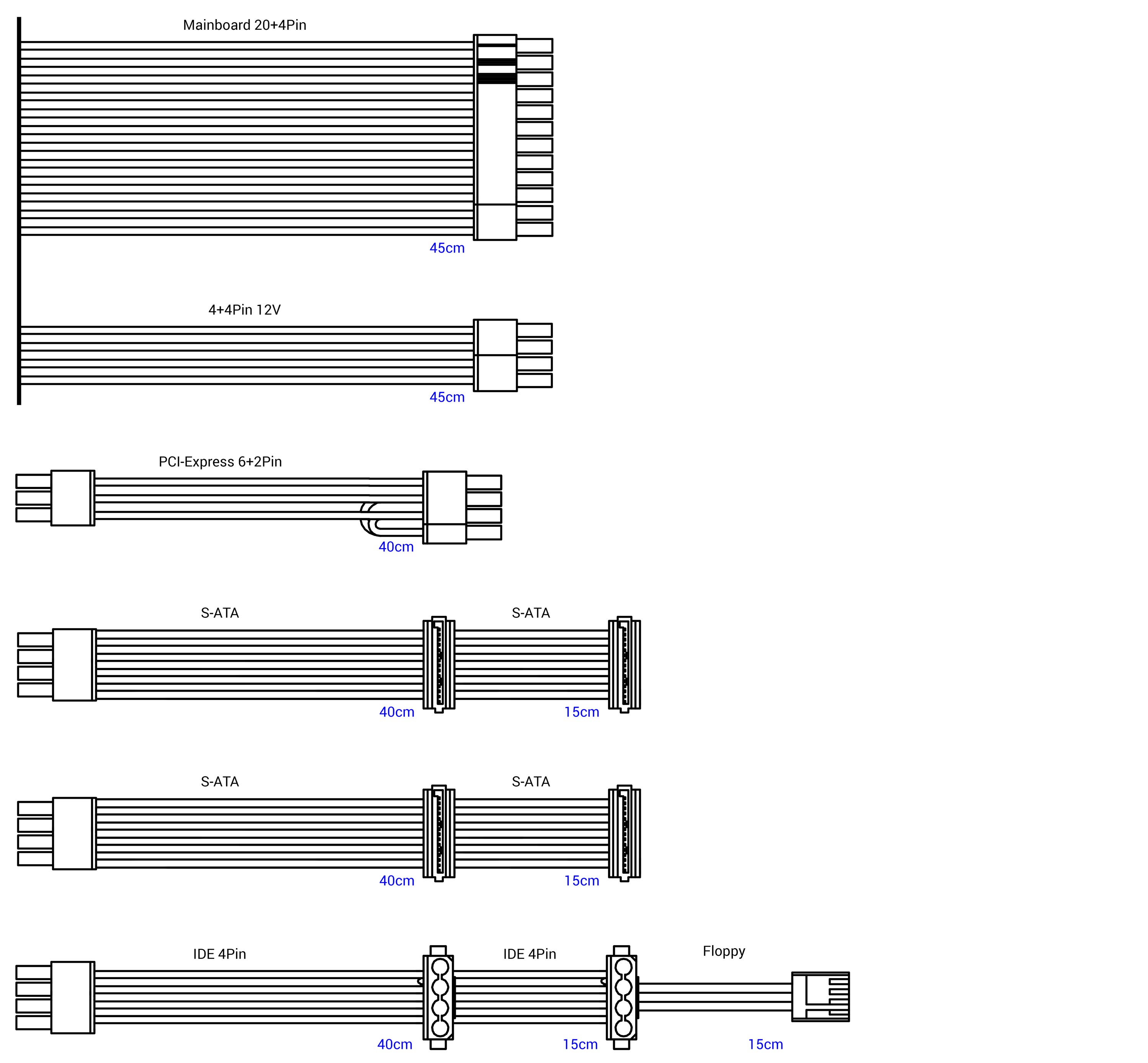

Power150W 550W 20W 650W cable configuration
-
No special accessories are available for this product.
