EPS-750W CM
Item No.: 88882091
888820914260133123465
The Energon EPS-750W CM Power Supply with Cable Management
Based on our top selling product Energon EPS-750W, Inter-Tech designed the EPS-750W CM to satisfy the growing demand of the market for power supplies with flexible cable management. Except the basic 20+4 mainboard and P4+4 connectors which are bounded all other connectors are modular.
Additionally, the EPS-750W CM is equipped excellently with a super silent 135mm fan, a PCI-Express and a big array of S-ATA and IDE connectors.
Two standard S-ATA to IDE adapters makes the EPS-750W CM even more flexible in its range of use.
-
-
| Power & Efficiency |
| Output |
750Watt |
| Efficiency |
at 20%84.8%
at 50%86.6%
at 100%83.3%
at 20% = 84.8%
at 50% = 86.6%
at 100% = 83.3%
|
| ATX-Version |
2.2 |
| Connectors |
| Mainboard 20+4Pin |
1x |
| 4Pin / 4+4Pin / 8Pin 12V |
/ / |
| PCI-Express 6+2Pin |
2x |
| PCI-Express 6Pin |
|
| IDE 4Pin (Molex) |
3x |
| S-ATA |
8x |
| Floppy |
1x |
| Fan monitoring |
|
| Cable management |
|
| other Data |
| Fans / -size |
1x 135mm |
| Fan control |
auto |
| Full Range Input |
auto |
| 80PLUS® Certificate |
|
| Noise level |
19-21dB |
| Dimension (h/w/d) |
86 x 150 x 160mm |
| Guarantee |
24 months |
| Safeties |
OVP,
SCP
,
OPP,
UVP,
OS |
| Scope of delivery & Features |
| Scope of delivery |
Power supply EPS-750W CM
Retail package
2x S-ATA to IDE Adapter
Cable Strips
Thumbscrews
Power Cord
User manual in German
|
| Logistical data |
| Shipping Unit |
1 Pcs |
| Packing Unit |
5 Pcs |
| EU palett |
210 Pcs |
| Weight |
net = 1.52kgs
gross = 2.32kgs |
| Item number |
88882091 |
| EAN-Code |
4260133123465 |
-
Performance data
| AC Input |
115V/230V 4.5A 50-60Hz |
| DC Output |
+ 3.3V |
+ 5V |
+ 12V1 |
+ 12V2 |
+ 12V3 |
+ 12V4 |
- 12V |
+ 5VSB |
Energon
EPS-750W CM |
Max.
Current |
28A |
28A |
20A |
20A |
20A |
20A |
0.8A |
2.5A |
Max.
Combined
Power |
180W |
560W |
20W |
| 750W |

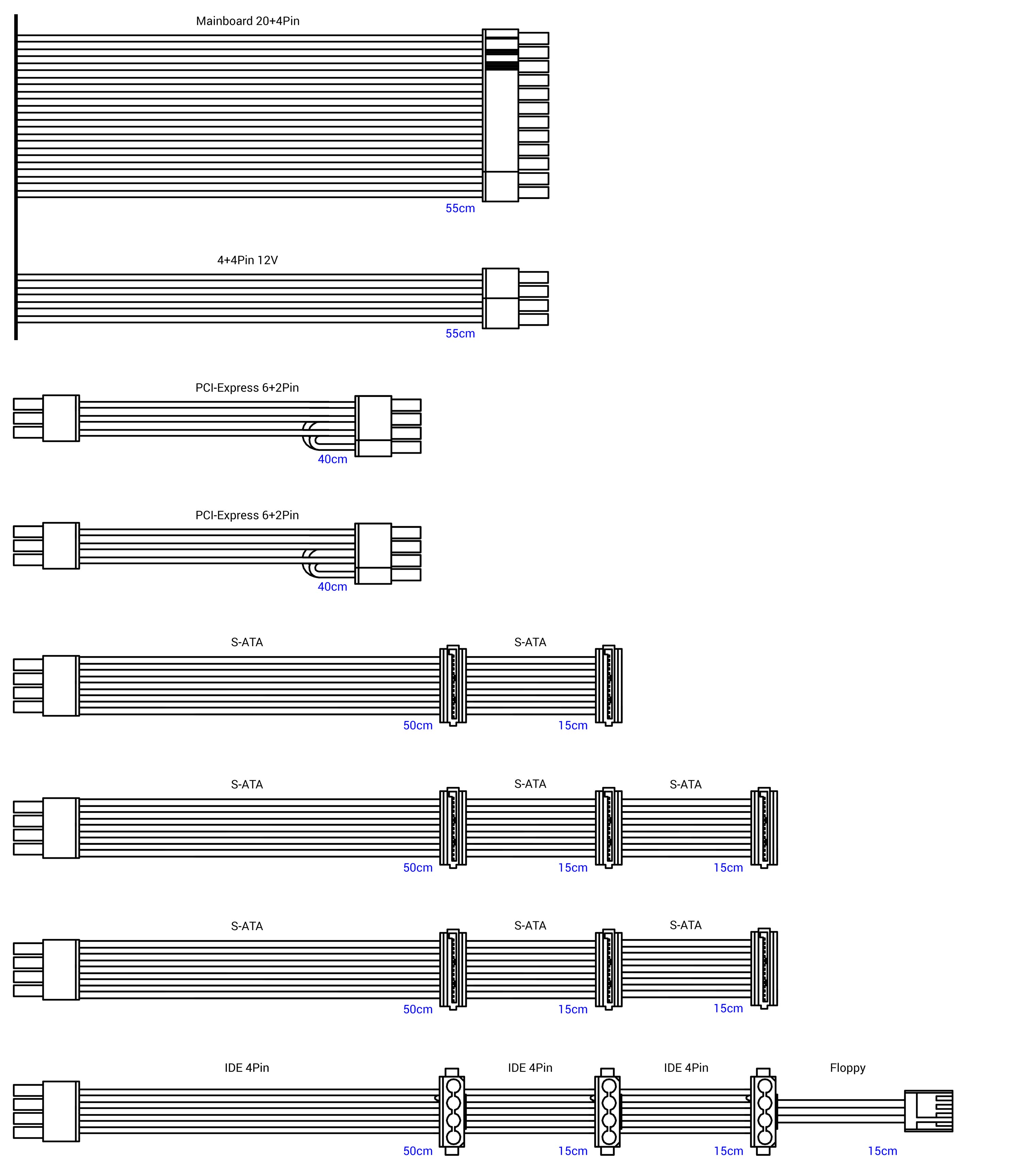

cable configuration
-
No special accessories are available for this product.
-
